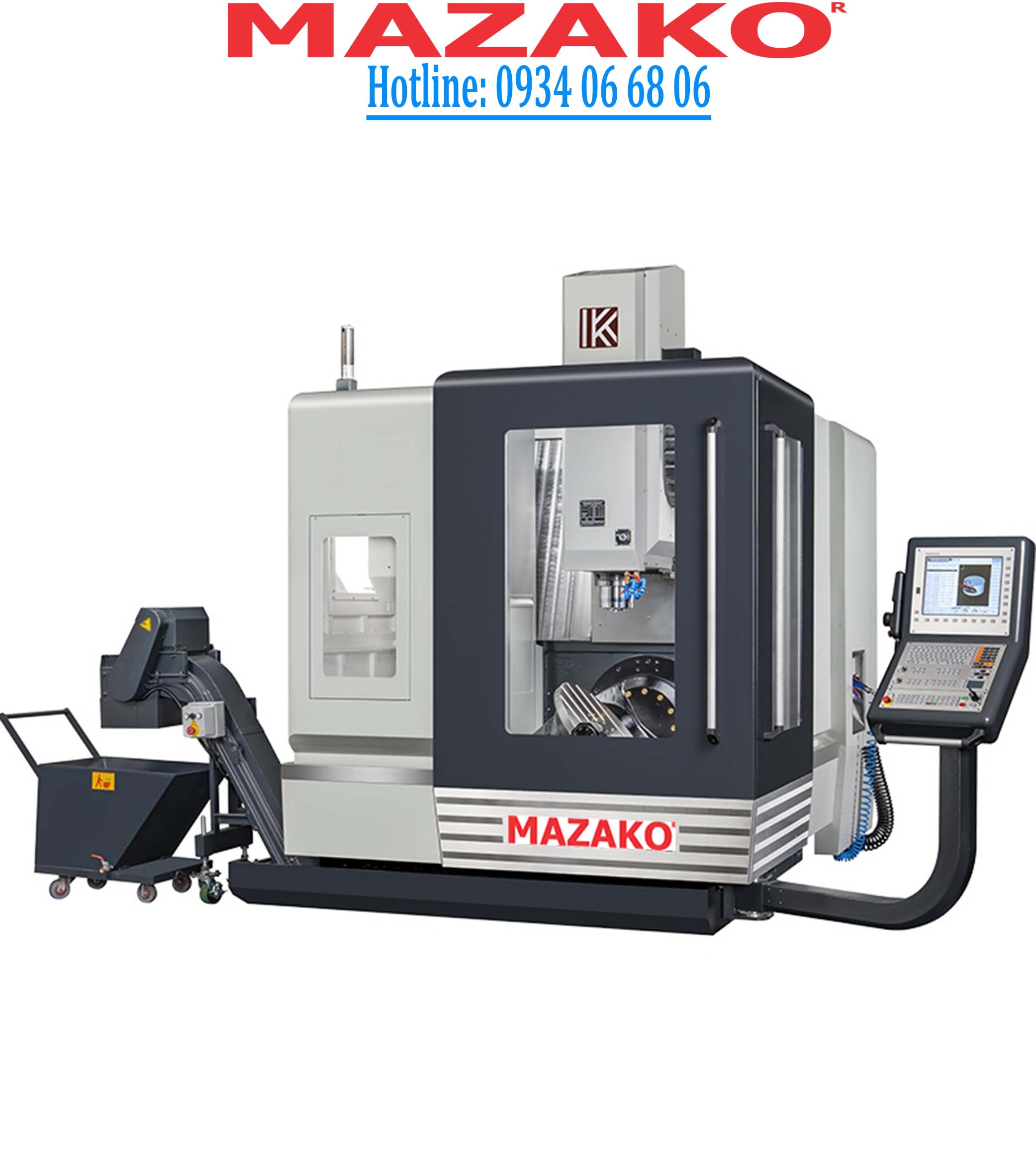

Technological Excellence: 5-Axis Machining (4 Simultaneous Axis)

2. Features, structure and specifications of machine

Features and Structure:

The machine structure design is subject to 3D dynamic simulation and finite element analysis, thus the best possible structural rigidity, stability, and dynamic/ static accuracy can be achieved.

Ultra large Working Area: The column is designed with a large-span box and thick rib wall structure, which is stable and reliable during high-speed cutting. The X and Y axes are designed with a cross slide to provide the best machining accuracy and the stability of the machined surface quality.

Advanced controller can increase the accuracy and efficiency while doing machining.

Three axes roller linear guideways can reduce the friction and keep the repeat position accuracy and increase the efficiency while cutting.

Table size Ø650mm: The two-axis cradle table is designed with supports at both ends, and the large-diameter disk surface is Ø650 mm. It has a large processing range, can handle high loads, and can maintain the best dynamic accuracy.

HIGH PERFORMANCE SPINDLE: BBT 30/40 taper provides a firmer grip to the tools, which prevents tool vibration that affects machining accuracy.

Specifications of machine:

• No. of Simultaneous axis: 4
• Table size: Ø650
• X/Y/Z Axis travel: 620 / 520 / 460 mm
• B Axis tilting range: -50°~+110°
• C Axis rotary range: 360° (0.001°)
• Spindle nose to table surface: 150 ~ 610 mm
• Work height from floor: 770 mm
• Max. loading capacity: 300 kg (Horizontal) and 200 kg (Tilting)
• Spindle speed: Direct drive 12000 rpm (15000;built-in 20000 opt.)
• Spindle taper (Tool shank): BBT40 (HSK-63A opt.)
• Spindle motor: 10/12.5 kW
• X/Y/Z Axis rapid feed rate: 36 / 36 / 36 m/min
• X/Y/Z Axis cutting feed rate: 15 / 15 / 15 m/min
• X/Y/Z Axis linear guide (roller): 45 / 45 / 45 mm
• X/Y/Z Axis ballscrew: 40 / 40 / 40 mm
• X/Y/Z Axis servo motor: 6.5 / 5.1 / 6.5 kW
• Max. tool size(full/empty): Ø75mm / Ø125mm
• Max. tool length: 250mm
• Max. tool weight: 7kg
• ATC type / Magazine No.: ARM 24T
• Tool change time: 2.3 sec
• Machine dimension: 3510 x 4240 x 3000 mm
• Machine weight: 8200kg
• CNC Control: MITSUBISHI / FANUC

3. Standard equipment

• Fully enclosure guard
• Cutting coolant system
• Automatic lubrication system
• Work lamp
• Three color operation lamp
• Heat exchanger for electric cabinet
• Water gun/ air gun
• Spindle oil cooler
• Chip flushing system
• Ring type cutting coolant system
• Front door and side doors switch
• OPT8 Rotary table machining & coordinate transformation (TNC)
• Roller type linear guideways
• Chain type chip conveyor
• B / C axis optical encoder

4. Optional Equipment

• X/Y/Z Axis optical linear scale ± 5mm
• Disc type oil skimmer
• Tool length measurement
• Workpiece measurement
• Coolant through spindle
• Air conditioner for electric cabinet
• CE conformity
• Transformer
• Oil mist collector
• Top cover
• Center Calibration Function
• Spindle programmable air blow
