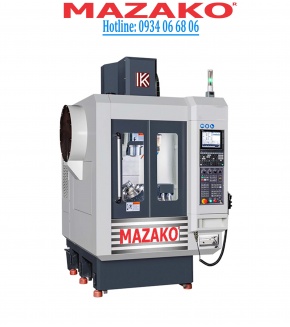

The Technology of 5 Simultaneous Axis Machining

2. Features, structure and specifications of machine

Features and Structure:

Optimum Rigid Structure / High-speed / High-precision: The machine adopts a vertical C-shaped structure design, the best high-rigidity structure. A small five-axis processing machine specially designed for customers with the smallest footprint. The big span structure of Y axis wider junction between column and base provides the most stable.

High speed A.T.C: Tool change time up to 2.3 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shortens the machining time enhancing the output.

CNC tilting rotary table: Precision computerized indexing rotary table is suitable for machining workpiece from different angles including curve surface. Table size Ø220mm: The double-axis single-arm table is driven by one side. The single-arm design is easy to operate and saves space inside the machine.

HIGH PERFORMANCE SPINDLE: BBT 30/40 taper provides a firmer grip to the tools, which prevents tool vibration that affects machining accuracy.

Specifications of machine:

3. Standard equipment

• Fully enclosure guard
• Cutting coolant system
• Automatic lubrication system
• Work lamp
• Three color operation lamp
• Heat exchanger for electric cabinet
• Water gun/ air gun
• Spindle oil cooler
• Chip flushing system
• Ring type cutting coolant system
• Front door and side doors switch
• OPT40 DCM collision monitor for TNC640
• OPT48 Kinematics for TNC640
• OPT8 Rotary table machining & coordinate transformation (TNC)

4. Optional Equipment

• Roller type linear guideways
• Chain type chip conveyor
• B / C axis optical encoder
• X/Y/Z Axis optical linear scale ± 5mm
• Disc type oil skimmer
• Tool length measurement
• Workpiece measurement
• Coolant through spindle
• Air conditioner for electric cabinet
• CE conformity
• Transformer
• Oil mist collector
• Top cover
• Center Calibration Function
• Spindle programmable air blow

5. Official authorized agent: MAZAKO CO., LTD

For technical inquiries or quotations regarding machines, please contact:

MAZAKO CO., LTD

C.E.O: Mr. TAN NGUYEN VAN

Hotline: (+84) 934 066 806 – 0978 554 005

Address: 38, GS09 Street, Dong Hoa Ward, Ho Chi Minh City, Viet Nam.

Email: sales@mazkao.vn

Tax code: 3702364973

Websites: www.mazako.com.vn | mazako.vn
