Introduction: The Future of Precision Manufacturing

The 5-Axis Machining Center technology represents the pinnacle of CNC precision. By utilizing 4 simultaneous axes, the MF22 allows for the production of complex geometries in a single setup, drastically reducing human error and increasing throughput. This technology is essential for high-end aerospace, medical, and automotive components where accuracy is non-negotiable.

2. FEATURES, STRUCTURE AND SPECIFICATIONS OF MACHINE

2.1 Features and Structure

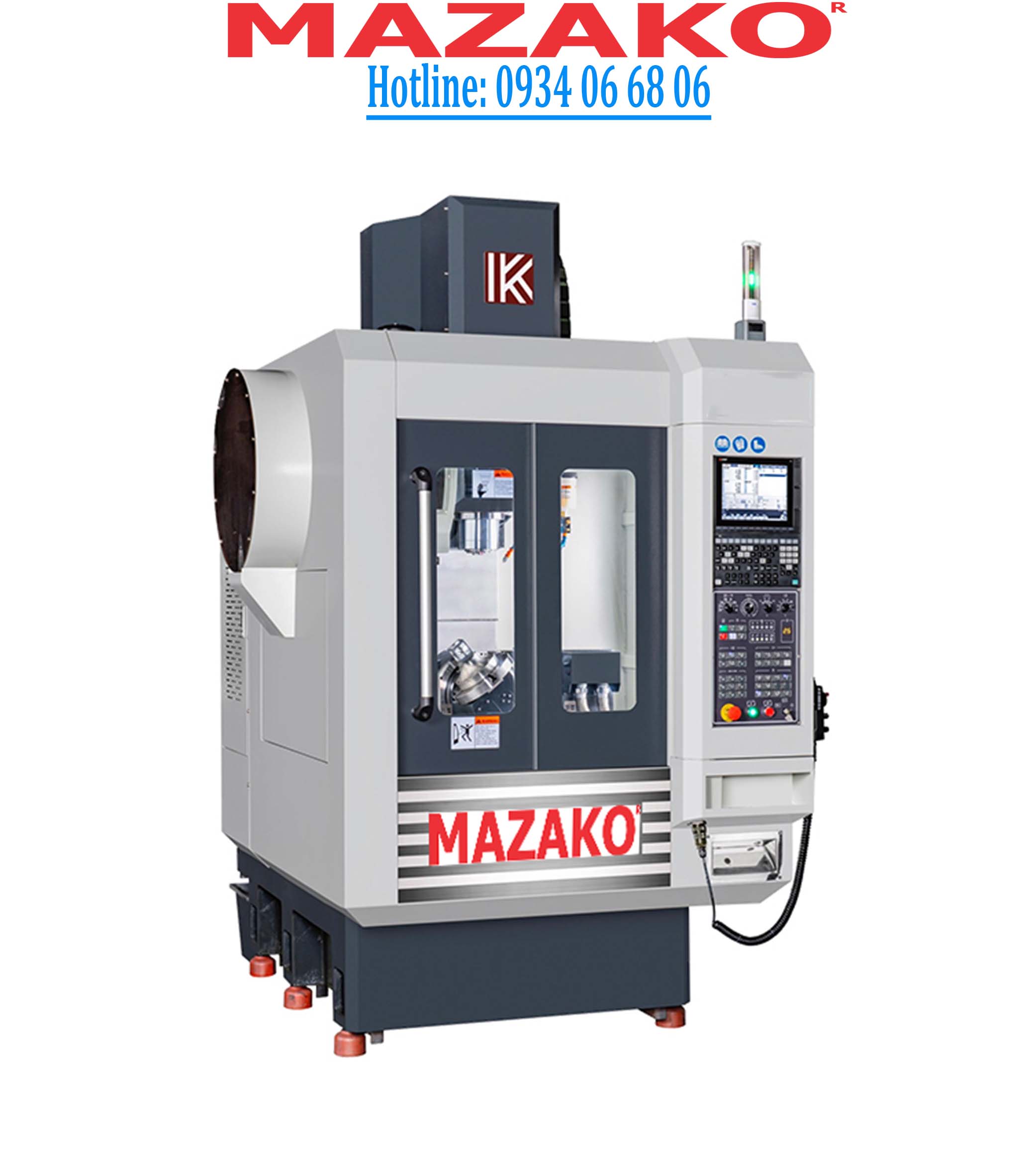

Optimum Rigid Structure / High-speed / High-precision: The machine adopts a vertical C-shaped structure design, the best high-rigidity structure. A small five-axis processing machine specially designed for customers with the smallest footprint. The big span structure of Y axis wider junction between column and base provides the most stable.

High speed A.T.C: Tool change time up to 2.3 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shortens the machining time enhancing the output.

CNC tilting rotary table: Precision computerized indexing rotary table is suitable for machining workpiece from different angles including curve surface. Table size Ø220mm: The double-axis single-arm table is driven by one side. The single-arm design is easy to operate and saves space inside the machine.

HIGH PERFORMANCE SPINDLE: BBT 30/40 taper provides a firmer grip to the tools, which prevents tool vibration that affects machining accuracy.

2.2 Specifications of machine

3. STANDARD EQUIPMENT

• Fully enclosure guard
• Cutting coolant system
• Automatic lubrication system
• Work lamp
• Three color operation lamp
• Heat exchanger for electric cabinet
• Water gun/ air gun
• Spindle oil cooler
• Chip flushing system
• Ring type cutting coolant system
• Front door and side doors switch
• OPT8 Rotary table machining & coordinate transformation (TNC)

4. OPTIONAL EQUIPMENT

• Roller type linear guideways
• Chain type chip conveyor
• B / C axis optical encoder
• X/Y/Z Axis optical linear scale ± 5mm
• Disc type oil skimmer
• Tool length measurement
• Workpiece measurement
• Coolant through spindle
• Air conditioner for electric cabinet
• CE conformity
• Transformer
• Oil mist collector
• Top cover
• Center Calibration Function
• Spindle programmable air blow
